-- BobWicksall - 06 Jun 2019

Commodore 1902 Monitor

I have been unable to find a 1902 service manual but at least at first glance the Commodore 2002 monitor is a close match:

  • Layout and Electrolytics match on Power board and Video board
  • Layout of Main board appears to be nearly identical
  • Main Board markings on the 1902 are:
    • (5AS) 2061758-818 ELNA-87 94V-0
  • Main Board markings on the 2002 Service Manual are:
    • (5AS) 2061758-800 ELNA-87 94V-0

Capacitor List

Note: These capacitor values and locations appear to match page 25 of the service manual for the Commodore 2002.

Main Board
C207 10uF (M) 25V BP
C209 2.2uF (M) 50V
C210 220uF (M) 16V
C212 100uF (M) 16V
C213 1uF (M) 50V
C307 0.22uF (M) 25V
C308 0.22uF (M) 25V
C309 4.7uF (M) 50V
C310 0.22uF (M) 25V
C311 0.22uF (M) 25V
C401 47uF (M) 16V 4.7uF 25V and BP(NP) in 2002 service manual but actual value is on the left.
C402 4.7uF 25V BP (Also not on the C2002 Capacitor list but is on the layout)
C403 2.2uF (M) 50V
C406 1uF (M) 50V
C413 100uF (M) 35V Small
C414 1000uF (M) 25V
C415 22uF (M) 25V BP
C416 220uF (M) 25V
C417 100uF (M) 16V
C420 10uF (M) 25V BP
C441 4.7uF (M) 50V
C452 100uF (M) 35V Small
C458 1uF (M) 50V
C460 10uF (M) 25V
C477 10uF (M) 25V
C478 1uF (M) 50V
C491 47uF (M) 16V
C511 22uF 160V
C512 33uF 160V
C701 47uF 160V
C703 1000uF 16V
C704 2200uF (M) 16V
C706 1000uF (M) 35V
C708 47uF (M) 35V
C710 1000uF 16V
C801 4.7uF (M) 50V
C802 4.7uF (M) 50V
C803 100uF (M) 16V
C805 330uF (M) 16V
C807 1000uF 16V
C809 10uF (M) 25V
C7218 22uF (M) 25V

Video P.C. Board
C201 1uF (M) 50V
C202 1uF (M) 50V
C203 100uF (M) 16V
C301 10uF (M) 25V

Neck P.C. Board
C251 10uF 160V

Power P.C. Board
C509 470uF 200V

These are on main board but under the shielding
C531 100uF (M) 10V
C535 100uF (M) 10V
C7201 330uF (M) 10V Small
C7202 220uF (M) 16V Small - Value in the manual is 330uF (M) 10V
C7203 330uF (M) 10V Small
C7204 330uF (M) 10V Small
C7207 1uF (M) 50V
C7208 10uF (M) 25V
C7209 10uF (M) 25V
C7210 10uF (M) 25V
C7211 33uF (M) 16V Corrected. Typed 22 rather than 33 the first time.
C7212 1uF (M) 50V
C7213 1uF (M) 50V
C7214 220uF (M) 16V Small
C7216 0.47uF (M) 50V
C7217 0.47uF (M) 50V
C7220 47uF (M) 10V Value in the manual is 470uF (M) 10V

Other Parts

My board had a "Vertical Collapse" problem along with some leaky and bad capacitors. Replaciong the following part resolved my issue:
  • uPC1378H - Vertical Deflection IC

Also purchased but didn't use:
  • LA7823 Genuine SANYO Sync / Deflection IC

Pictures

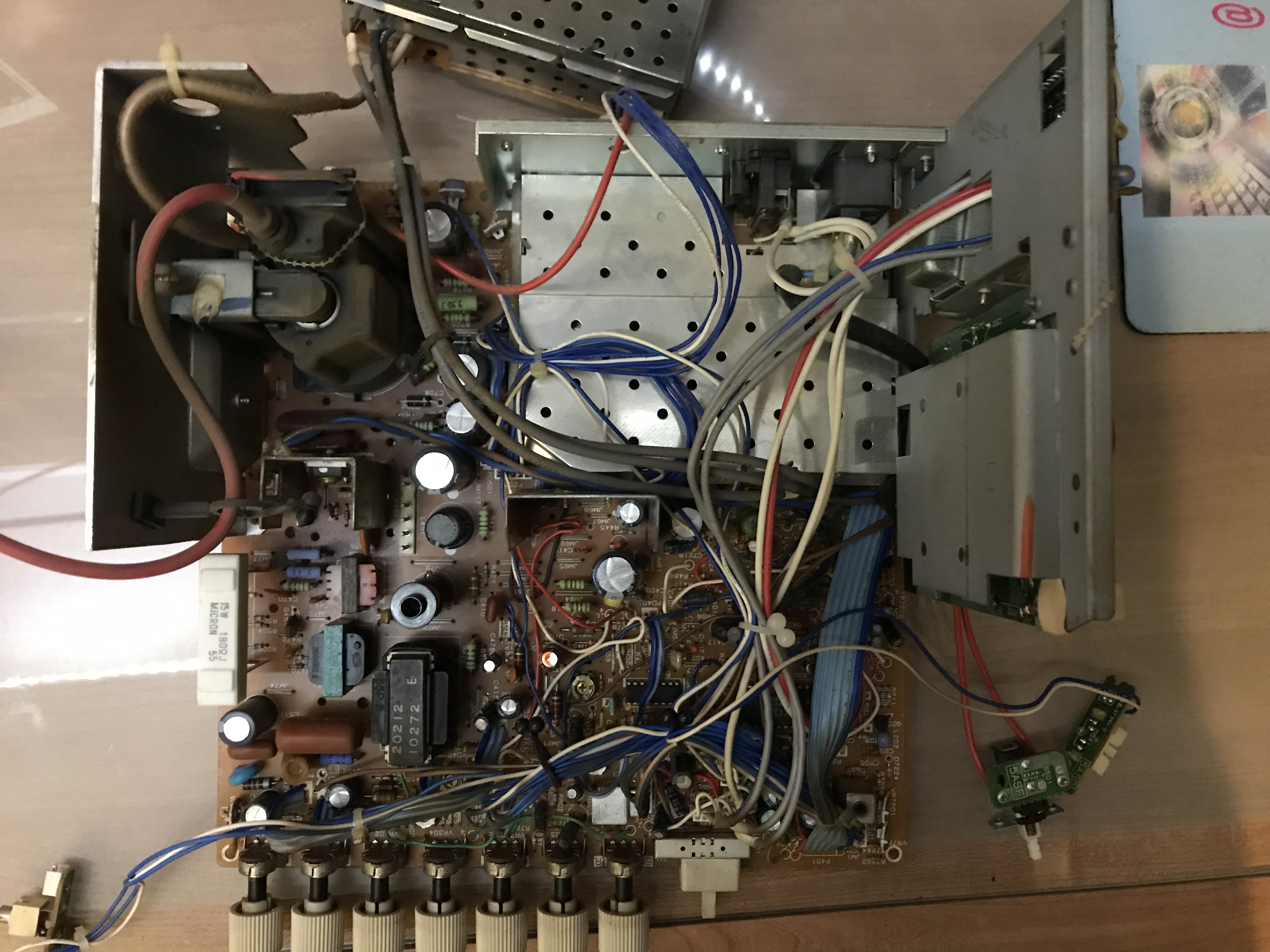

  • 1902_Top.jpg:
    1902 Top.jpg

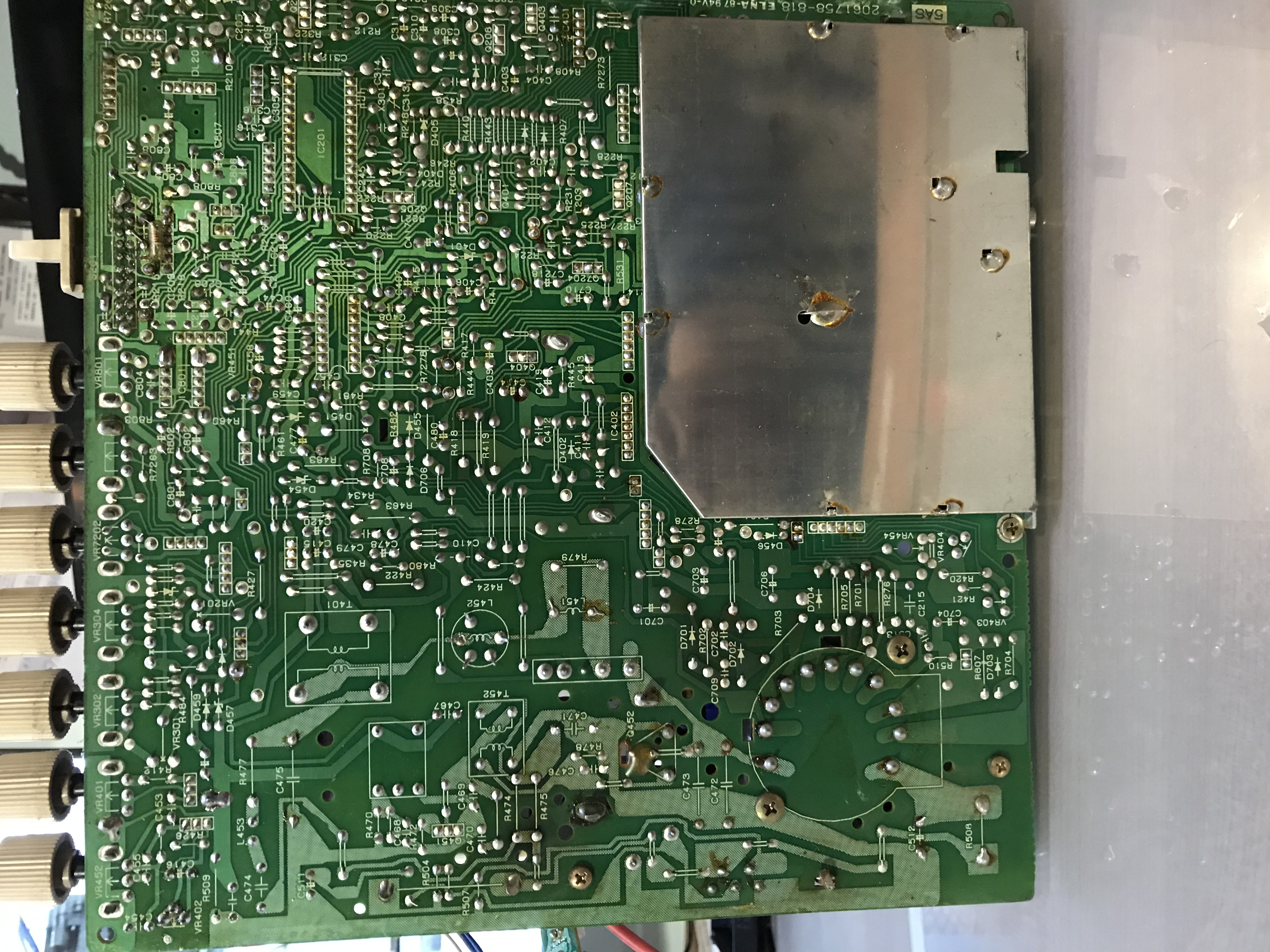

  • 1902_Bottom.jpg:
    1902 Bottom.jpg

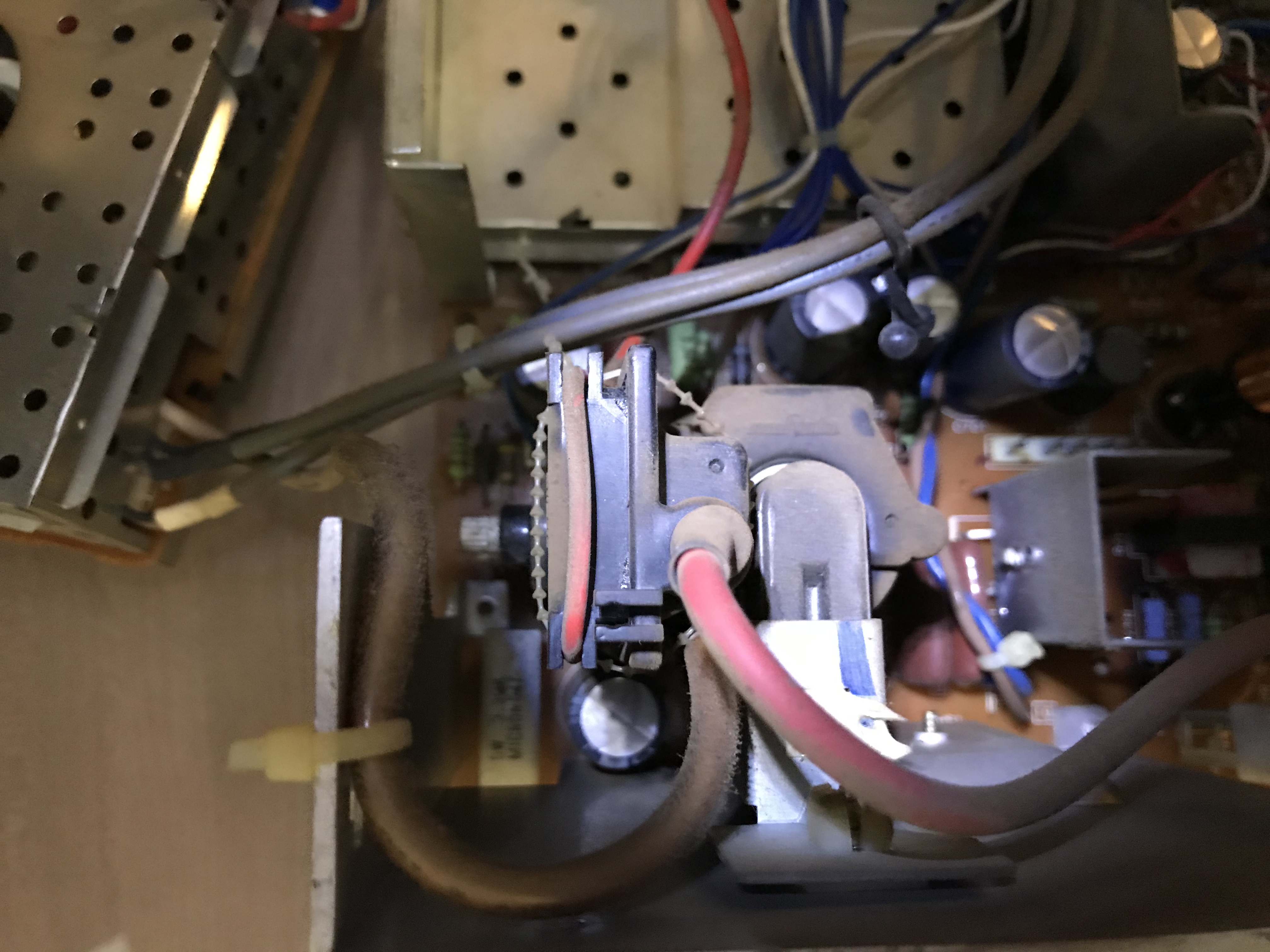

  • 1902_Cap_next_to_flyback_C512.jpg:
    1902 Cap next to flyback C512.jpg

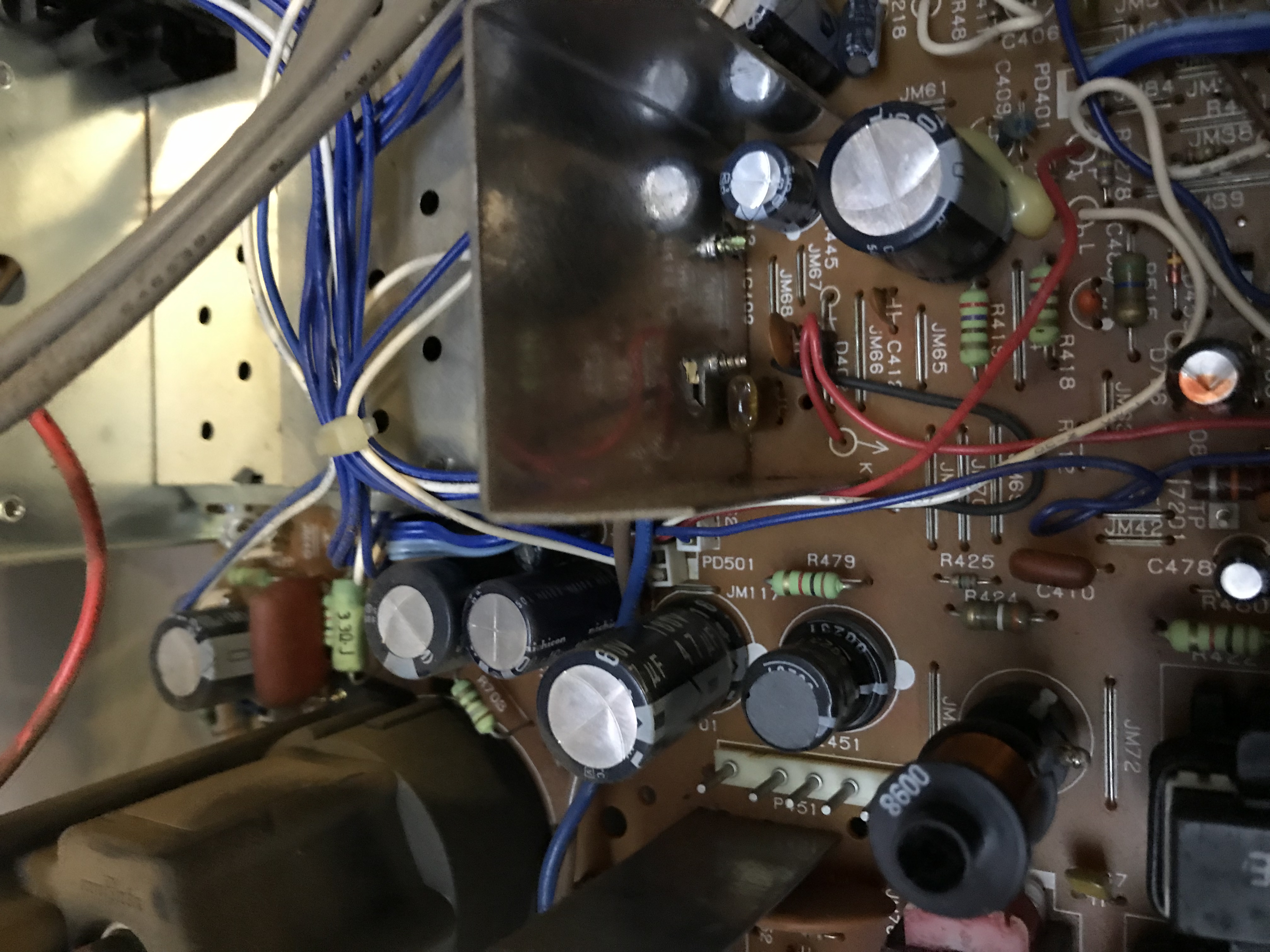

  • 1902_Caps_around_flyback.jpg:
    1902 Caps around flyback.jpg

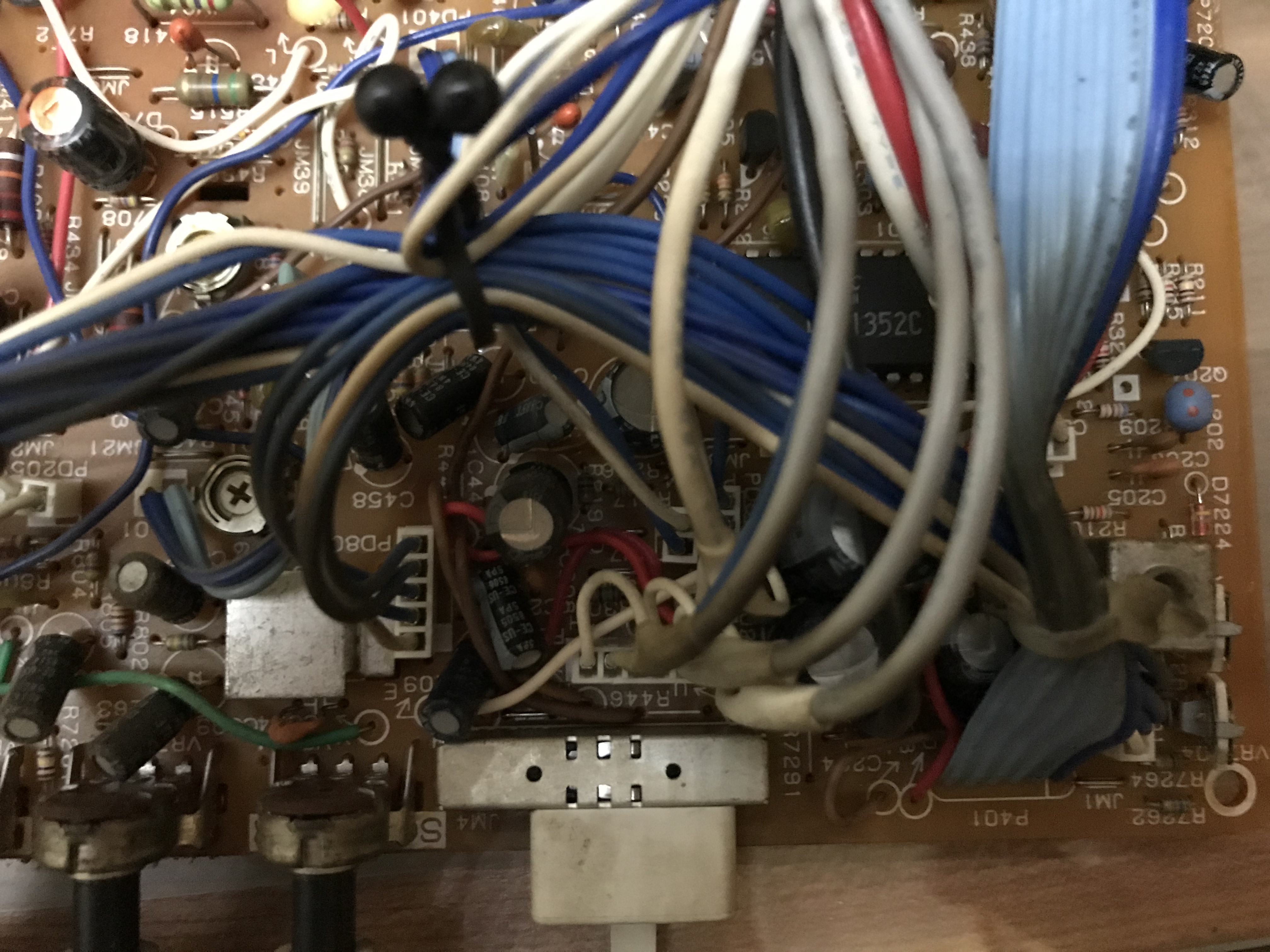

  • 1902_Caps_under_harness_mess.jpg:
    1902 Caps under harness mess.jpg

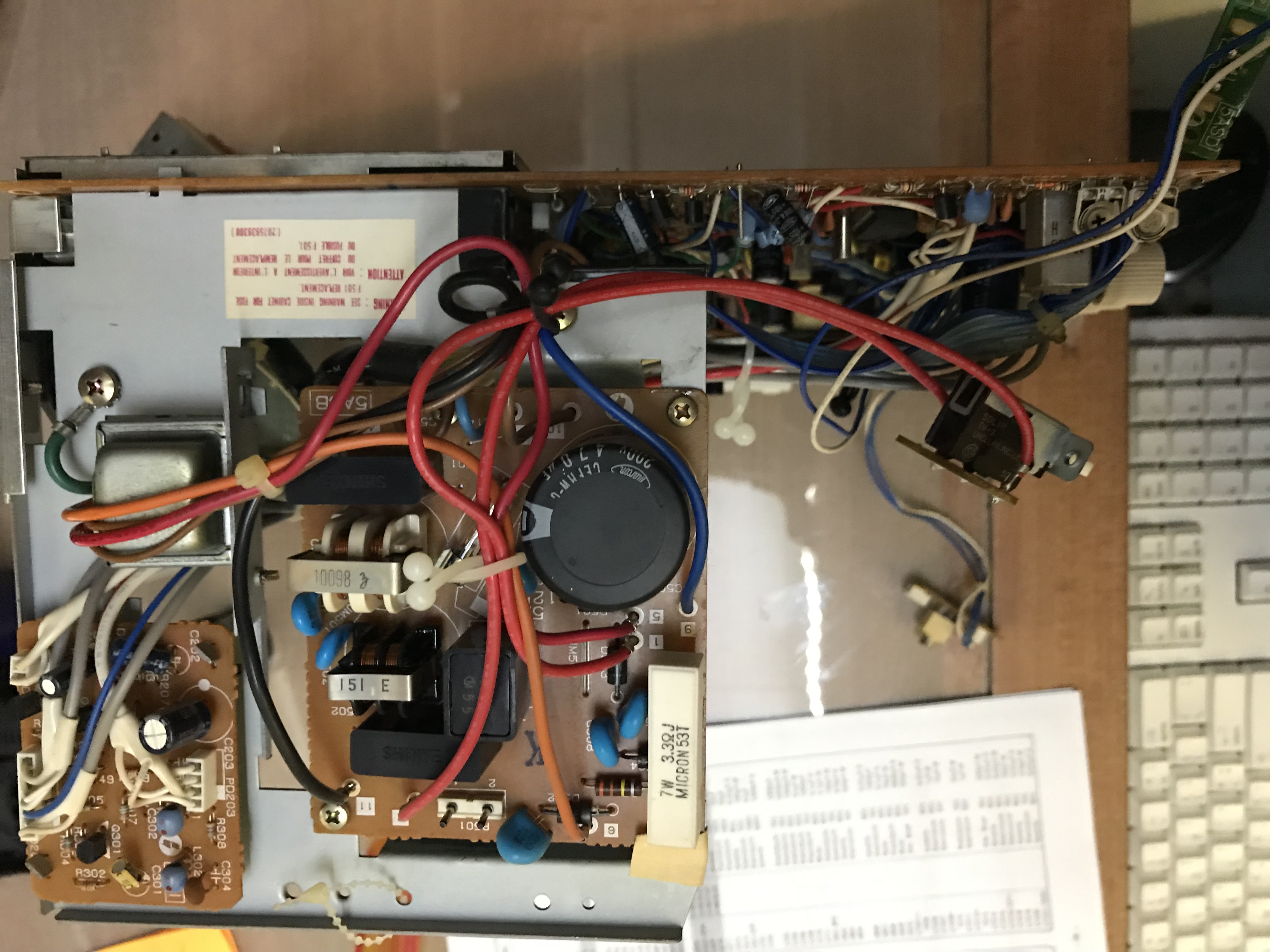

  • 1902_Power_and_Video_Boards.jpg:
    1902 Power and Video Boards.jpg

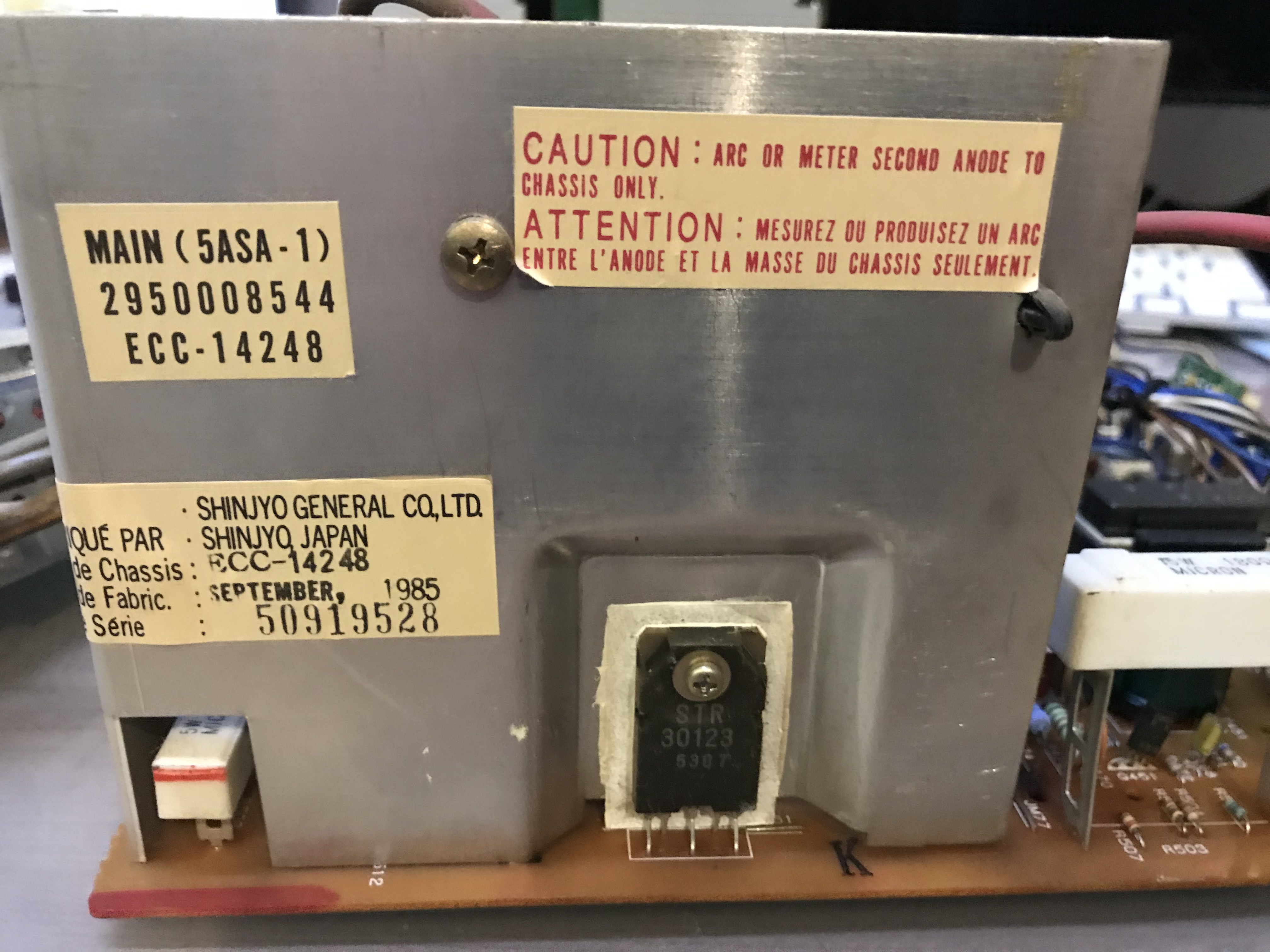

  • 1902_Large_Heatsink_Label.jpg:
    1902 Large Heatsink Label.jpg

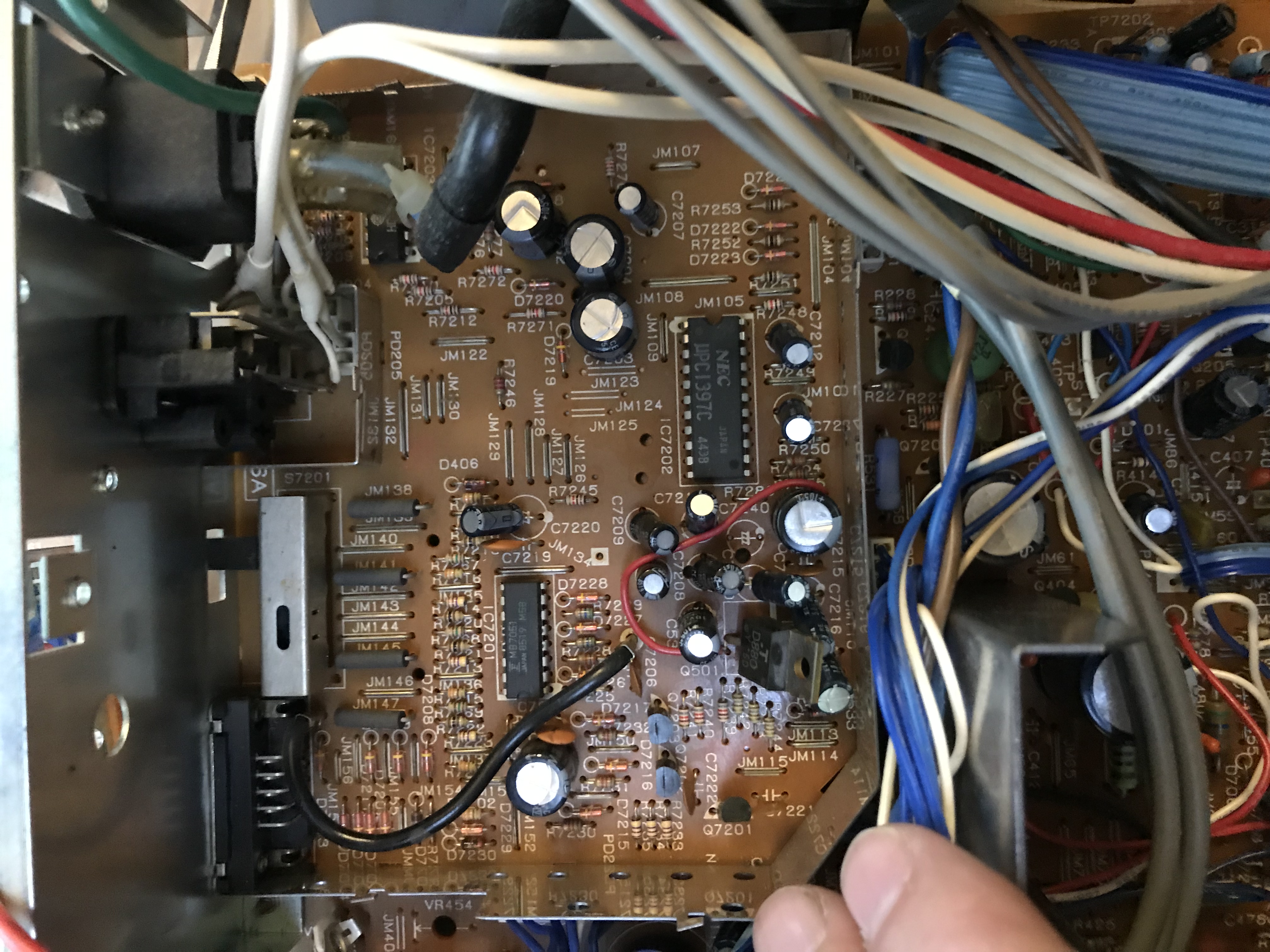

  • 1902_Under_Shielding.jpg:
    1902 Under Shielding.jpg
