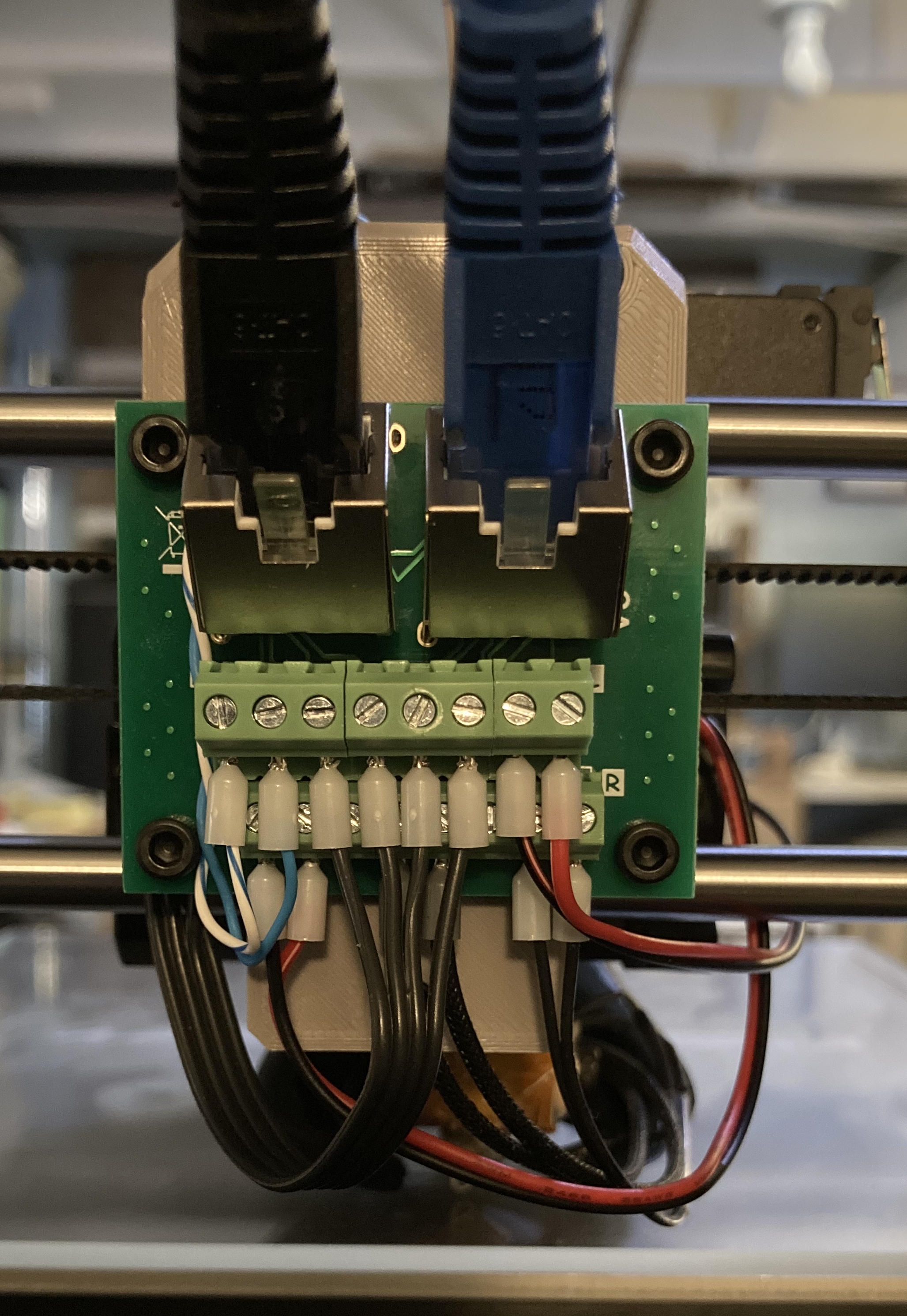

Ethernet Breakout on Monoprice Maker Select Plus X Carriage


Right Socket
1 2 3 4 5 6 7 8
O/W O G/W B B\W G Br/W Br
Heat Break Fan Hotend Power Temp Sensor
  Solid + White -

Left Socket
1 2 3 4 5 6 7 8
O/W O G/W B B\W G Br/W Br
End Stop E Stepper Part Fan
